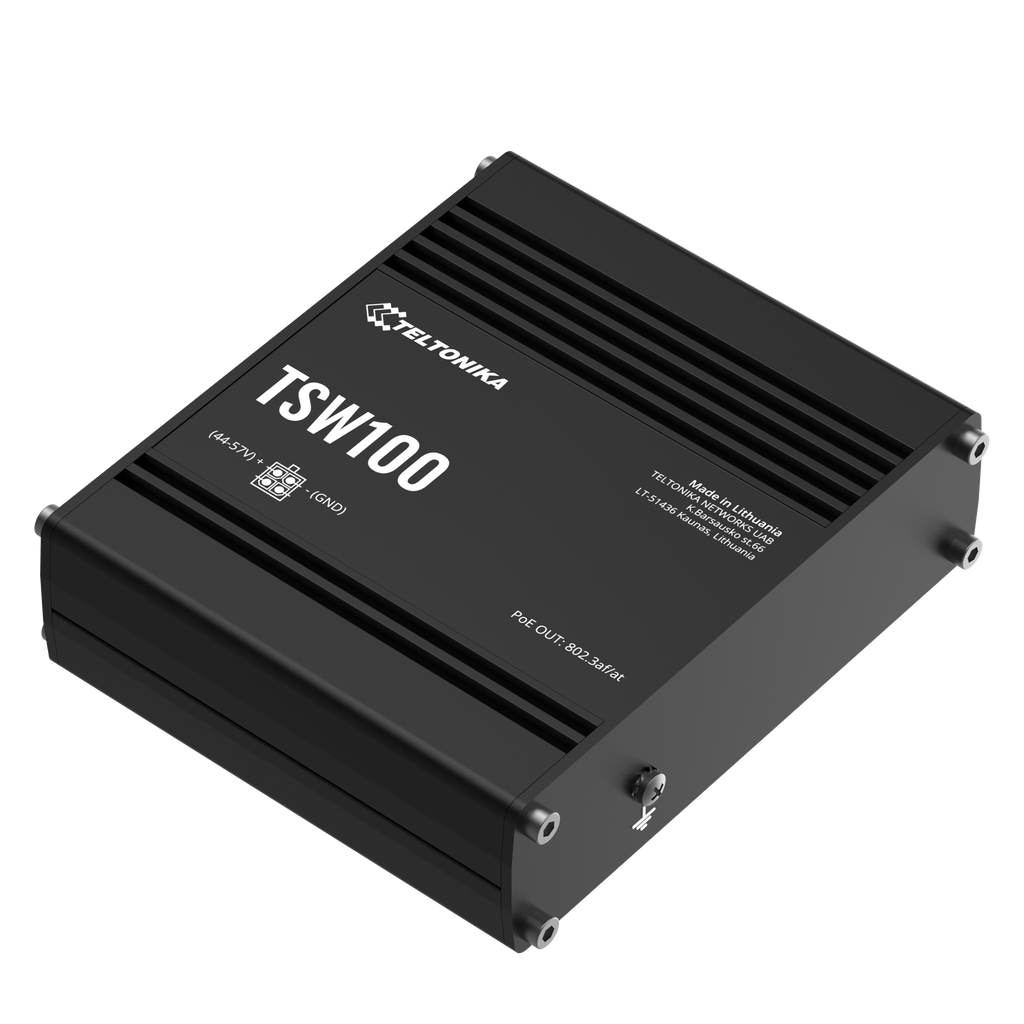

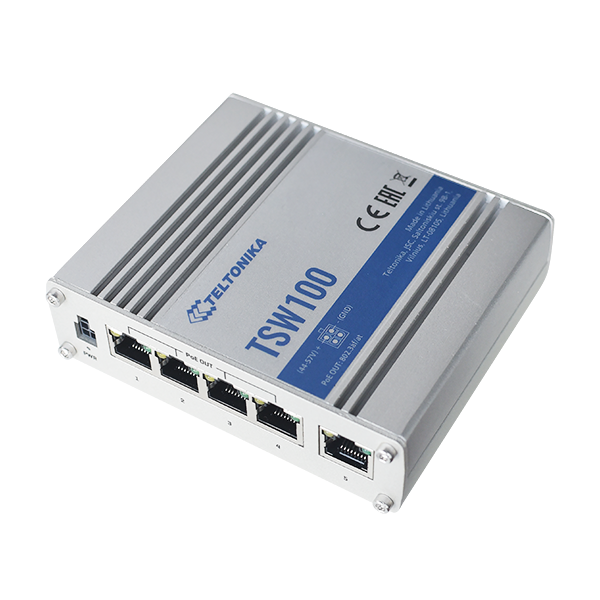

5 porttinen kytkin POE 1GB 802.3af/at 120w PnP

- Teollisuuskäyttöön soveltuva 5 -porttinen kytkin - Plug and Play yhteensopiva. Ei vaadi asennusta ja on heti käyttövalmis - 5 kpl 1000 Mbps (=Gigabit) ethernet porttia - Neljässä portissa POE virransyöttö videokameroille, IP-puhelimille ja langattomille yhteyspisteille Toimituksessa mukana: - 5 porttinen POE -kytkin TSW100 - Virtalähde 230V/130W ETHERNET 5 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover POE PoE ports: Port 1- 4 PoE standards: 802.3af and 802.3at PoE Max Power per Port (at PSE): 30 W Total PoE Power Budget (at PSE):120 W PERFORMANCE SPECIFICATIONS Bandwidth (Non-blocking): 10 Gbps Packet buffer: 28 KB Jumbo frame support: 9216 bytes MAC address table size: 2K entries POWER Connector: 4 pin industrial DC power socket Input voltage range: 7-58 VDC Power consumption (idle/max no PoE/max): 2 W/9 W/129 W PHYSICAL INTERFACES (PORTS, LEDS) Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps Status LED’s: 1 x Power LED, 10 x LAN status LED’s Power: 1 x 4 pin DC connector Ground:1 x Grounding screw PHYSICAL SPECIFICATION Casing material: Full aluminum housing Dimensions: 95 x 132 x 44 mm (L x W x H) Mounting: DIN rail or wall mounting (additional kit needed), flat surface placement OPERATING ENVIRONMENT Operating temperature: -40 °C to +75 °C Operating humidity: 0 % to 90 % non condensing
