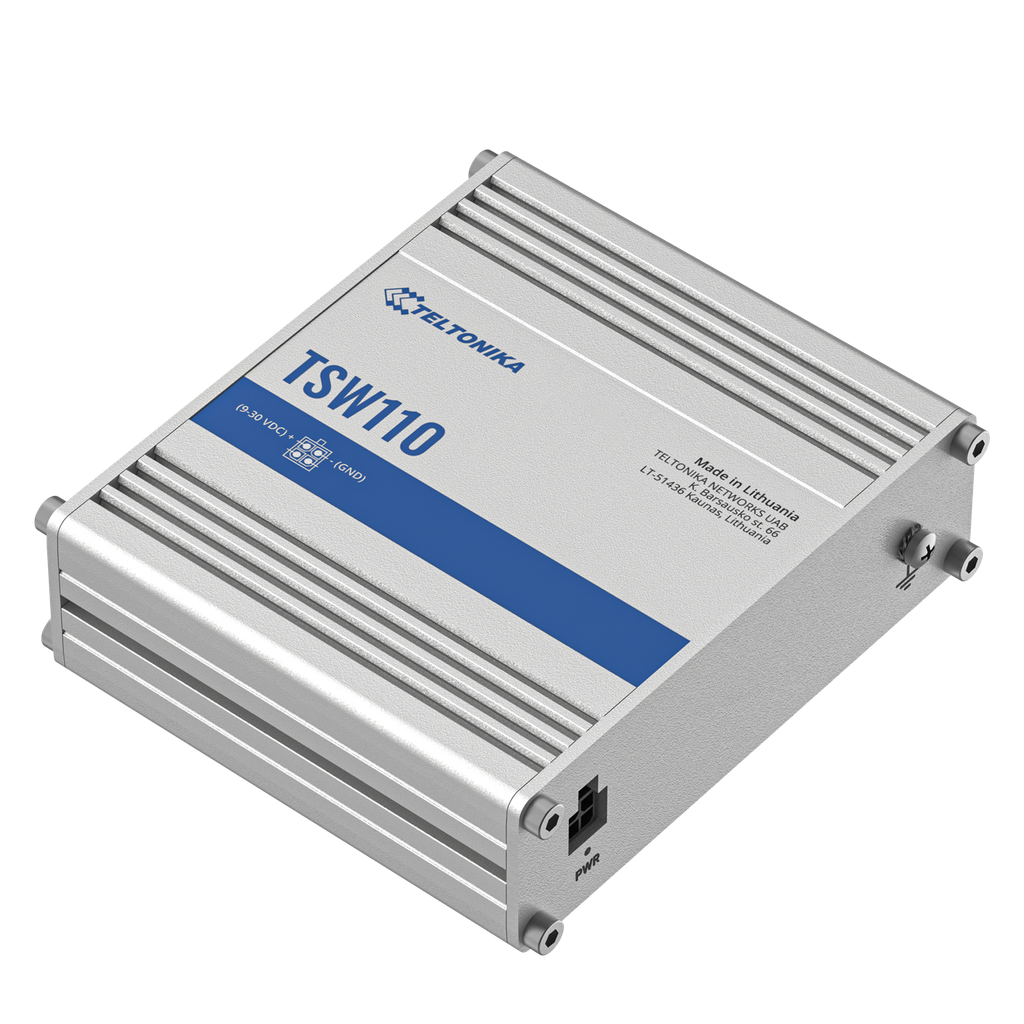

5 porttinen kytkin 1GB Layer 2 unmanaged switch
- Edullisempi versio TSW100 kytkimestä ilman POE:ta
- Plug and Play yhteensopiva. Ei vaadi asennusta ja on heti käyttövalmis
- 5 kpl 1000 Mbps (=Gigabit) ethernet porttia
ETHERNET
- 5 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
PERFORMANCE SPECIFICATIONS
- Bandwidth (Non-blocking) 10 Gbps
- Packet buffer 128 KB
- MAC address table size 2K entries
- Connector 4 pin industrial DC power socket
- Input voltage range 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
- PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
- Power consumption (idle/max) < 0.4 W/ <1.8 W
PHYSICAL INTERFACES (PORTS, LEDS)
- Ethernet 5 x RJ45 ports, 10/100/1000 Mbps
- Status LEDs 1 x Power LED, 10 x LAN status LED’s
- Power 1 x 4 pin DC connector
+ Ground1 x Grounding screw
PHYSICAL SPECIFICATION
- Casing material Full aluminum housing
- Dimensions (W x H x D) 100 x 30 x 85 mm
- Weight 227 g
- Mounting options DIN rail or wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
- Operating temperature -40 C to 75 C
- Operating humidity 10 % to 90 % non-condensing
Toimituksessa mukana:
- TSW110 5 porttinen kytkin
- Virtalähde 230V/9W
